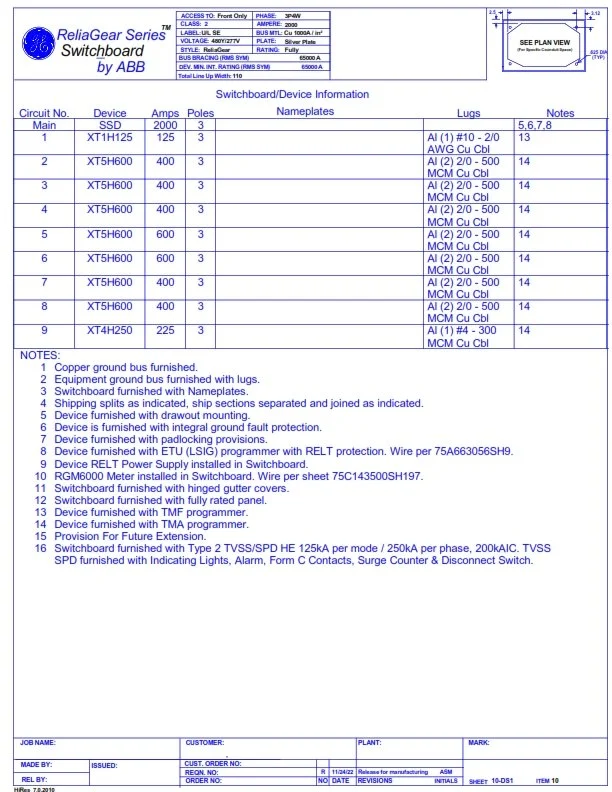

2000A Main Breaker Switchboard (4-Section)

ABB Switchboard, ReliaGear AV2

Estimated Shipping Weight: 2751 lbs

4 Section(s) Service Entrance

Service Entrance Labeling

3P4W/480/277V/60Hz

2000A 65 kAIC Fully Rated

Incoming Feed: Bottom Incoming Left Feeding Right

Type 1 Enclosure Front Only Access

Hinged Wire Gutter Cover

Bussed Pull Section 30W 40D 90H (Est.) lbs 467

Fire Pump Tap Section 15W 40D 90H (Est.) lbs 316

Evolution Main Section 30W 40D 90H (Est.) lbs 1057

Group Mounted Feeder ReliaGear Panel Section 35W 25D 90H (Est.) lbs 911

Bus Bracing 65000 AIC

Fully Rated Copper Bus 1000 A/Sq. in.

Ground: Equipment U/L With Lugs

Full Height Side Barriers Main Breaker

2000A 3 Pole SSD 100% Rated (2000A Frame) Indiv. Mtd. Main

Manually Operated MAIN Drawout Mounting Programmer (ETU) LSIG RELT

RGM6000 (Shark100-60-10-V4-D2-485P-X)

Type 2 SPD HE 125/250 per Mode/Phase kA, 200kaic

Feeders:

     (2) 600A 3 Pole XT5H600 (600A Frame)

           Manually Operated Programmer (TMA/TMD)

     (5) 400A 3 Pole XT5H400 (400A Frame)

          Manually Operated Programmer (TMA/TMD)

     (1) 225A 3 Pole XT4H250 (250A Frame)

          Manually Operated Programmer (TMA/TMD)

     (1) 125A 3 Pole XT1H125 (125A Frame)

          Manually Operated Programmer (TMF)
